Diagrams

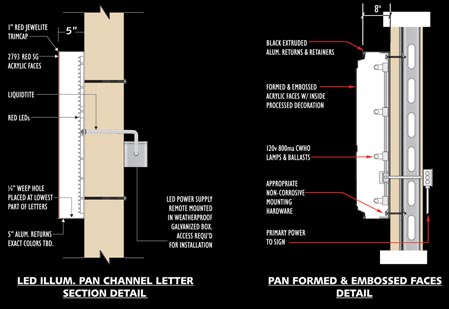

Our cut away section details make understanding the product a simple process. We can illustrate what materials will be used, what colors are specified, the type of illumination to be used as well as the method of installation including the fastening system.

Our technical diagrams can be as simple or as complex as needed.
We pride ourselves in showing the client, property owner, and permitting offices exactly what we are manufacturing and installing.

Whether your sign is a backlit cabinet, non-illuminated cabinet, or an internally illuminated channel letter, we can show you our assembly method, mounting method, and the power-supply method. We take the guesswork out of your project, and make the entire process simple.

“The diagrams provided by Lewis Sign really help me with the sign buying process. All I had to do was give Lewis Sign the address and the logo and they took it from there. They really took things to the next level, by showing me exactly what I was getting. The side view of the sign really cleared up a lot of confusion I had. They really know their stuff.”

-Darrine Miller Froots;
Texas Area Director
